Automatic instance selection¶

Since v0.18, Mork includes an automatic instance selector that can be used to decide which instances to use for the preliminary experimentation without user intervention.

TL;DR¶

Any JAR file built con Mork v0.18 or later, can be invoked as follows:

java -jar MyProblem.jar --instance-selector

Selected instances are copied to the output folder, along some diagrams explaining the decisions taken along the process.

Demo

Requirements¶

Python3 and pip must be installed and available in PATH. Required Python dependencies for the instance selector are automatically installed using pip.

Moreover, the instance must declare at least one numeric property to use for classification. The more properties declared, the better. Any redundant information in instance properties will be automatically removed, see section How it works for more information.

Instance properties can be easily declared during instance load or during instance construction using the method MyProblemInstance::setProperty(name,value). For example, in the DRFLP problem I declared the properties as follows:

    @Override
    public DRFLPInstance importInstance(BufferedReader reader, String filename) {
        Scanner sc = new Scanner(reader);
        // Instance parsing code removed for simplicity
        ...

        var instance = new DRFLPInstance(filename, facilities, weights);
        double[] avgs = new double[n];
        for (int i = 0; i < weights.length; i++) {
            var row = weights[i];
            avgs[i] = (double) ArrayUtil.sum(row) / n;
        }
        instance.setProperty("n", n);
        instance.setProperty("avgWeights", ArrayUtil.sum(avgs) / n);
        instance.setProperty("minWeights", ArrayUtil.min(avgs));
        instance.setProperty("maxWeights", ArrayUtil.max(avgs));
        return instance;
    }

Configuration¶

The behaviour of the instance selector can be easily configured, using the following properties:

Property	Description	Default value
`instances.preliminar-percentage`	Which proportion of the total set of instances should be selected. Value must be in range (0, 1)	0.15
`instances.preliminar-output-path`	Where should be the preliminary instances be copied, and where to save the generated diagrams	output
`instances.for-selection`	Path to the whole set of instances	Property `instances.path.default`

For example, to use a 20% preliminary set size, and output results to folder preliminar-output, the command would be similar to:

java -jar MyProblem.jar --instance-selector --instances.preliminar-percentage=0.2 --instances.preliminar-output-path=preliminar-output

How it works¶

Loading¶

The instance selector will load all instances specified in property instances.for-selection, or if not defined, instances.path.default. If the folder contains folders inside, they will be recursively enumerated. For each instance, all declared properties are calculated, and non-numeric properties are ignored. A CSV file with the raw property data is exported as instance_properties.csv, with a content similar to the following:

id,avgWeights,maxWeights,minWeights,n
A60_01.txt,2.00,3.86,0.46,60.0
A60_02.txt,1.14,2.7,0.26,60.0
A60_03.txt,0.96,2.68,0.13,60.0
A60_04.txt,0.51,1.18,0.0,60.0
A60_05.txt,0.63,1.41,0.05,60.0
A70_01.txt,1.09,2.74,0.18,70.0
A70_02.txt,1.28,2.64,0.12,70.0
A70_03.txt,1.03,2.2,0.15,70.0
A70_04.txt,0.67,1.31,0.14,70.0
A70_05.txt,3.19,6.71,0.47,70.0
sko56_01.txt,2.72,3.66,1.87,56.0
sko56_02.txt,2.72,3.66,1.87,56.0
sko56_03.txt,2.72,3.66,1.87,56.0
sko56_04.txt,2.72,3.66,1.87,56.0
sko56_05.txt,2.72,3.66,1.87,56.0

Correlation and filtering¶

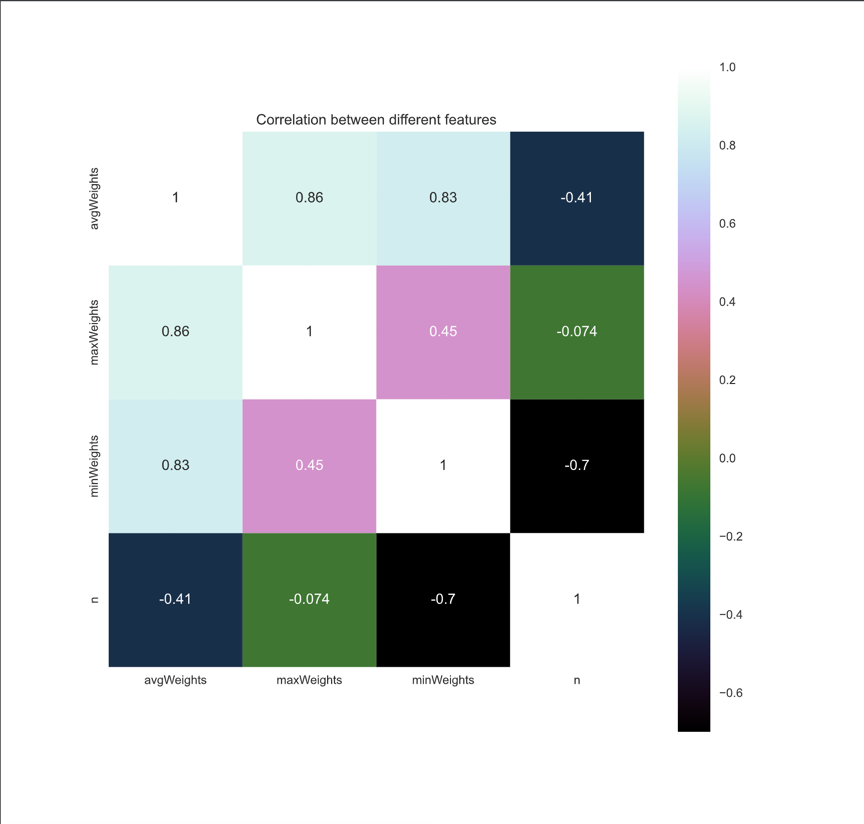

The data is then loaded by the Python script instance_selector.py, and the first step is calculating the correlation between each pair of properties, and exporting it to $output/correlation.pdf. Example:

Principal Component Analysis¶

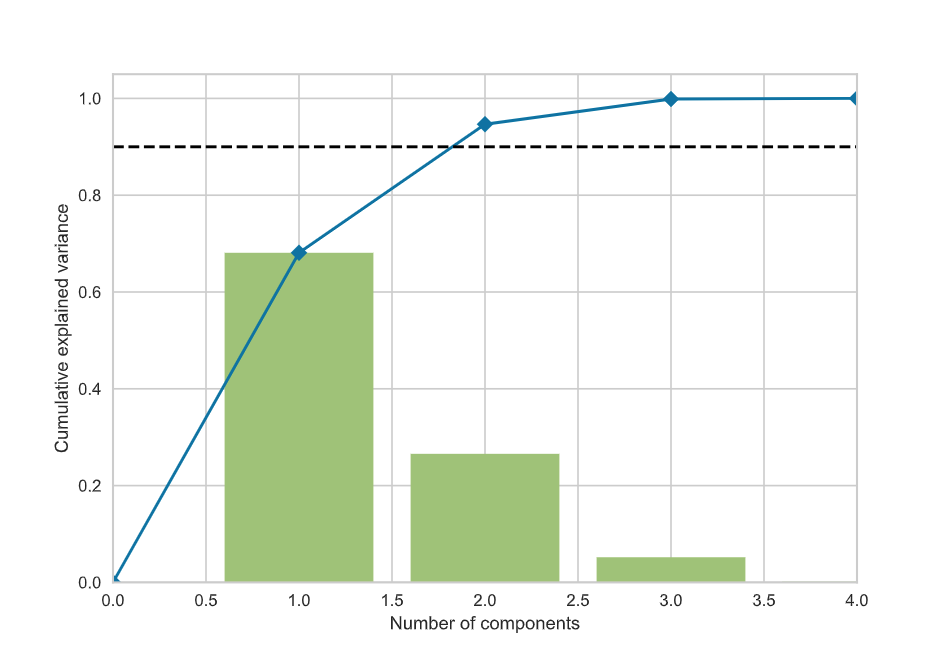

Then, characteristics are standardized and the PCA (Principal Component Analysis) method is used to reduce the dimensionality of the characteristics set. To decide how many components should be used, we select the minimum number of components whose accumulated explained variance ratio is greater than a configured preset, normally 90%, and the $output/pca.pdf is generated containing a diagram detailing this step. PCA

Clustering¶

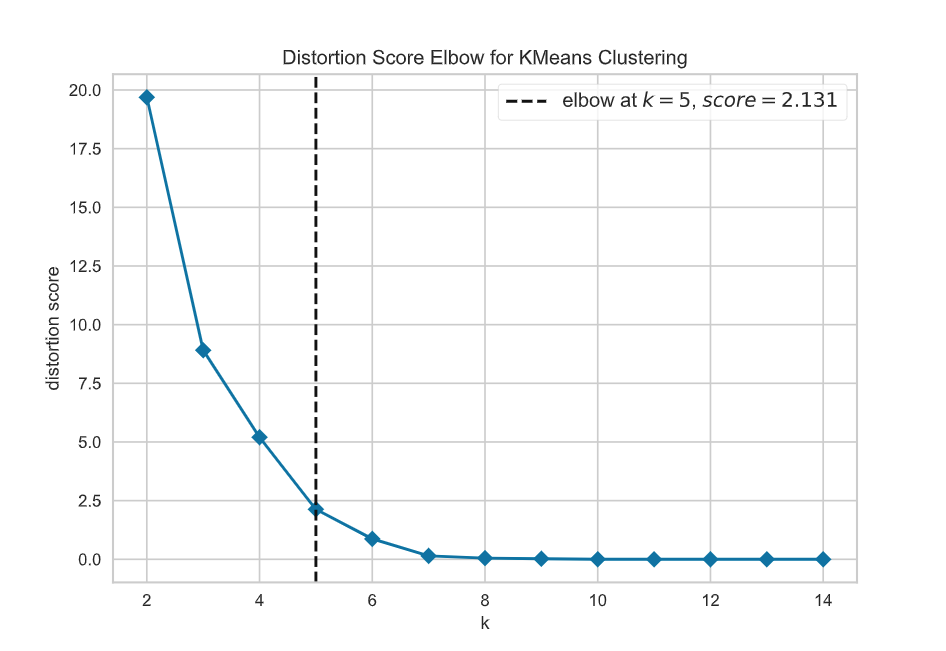

Once the dimensionality is reduced, the next step is clustering the instances, using the k-means++ algorithm. Because the number of clusters is not known in advance, we use the elbow method to decide a reasonable number of clusters. The elbow method is based on the fact that the distortion score for each clustering try will decrease as we increase the number of clusters, with diminishing returns. We select the number of clusters where the slope of the curve has a significant change, visually, the elbow of the curve. The diagram $output/kElbow.pdf and $output/pairPlots.pdf are generated. Te first one explains the decisions taken in this step for the current user execution, with a content similar to the following: kElbow

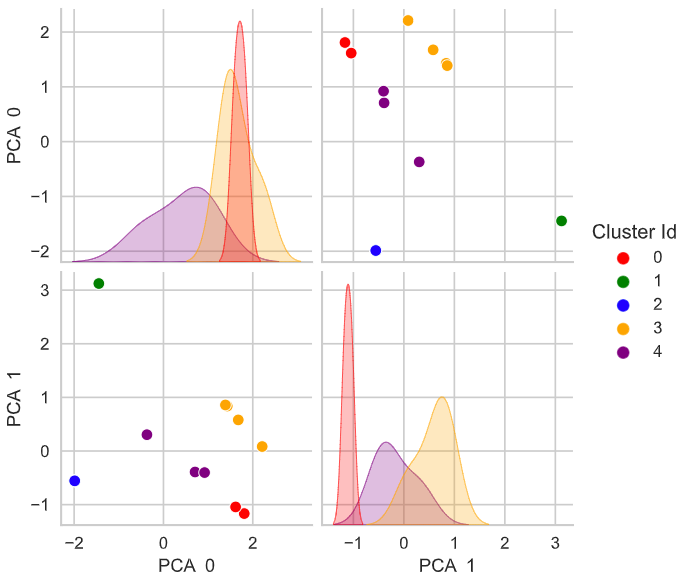

While the second one can be used to visually validate the quality of the clustering: pairPlots

Instance ranking¶

The last step consists on ranking the instances in each cluster according to their distance to the cluster centroid, and selecting the top instances for each cluster, up to the number of instances requested. The amount of selected preliminary instances is the multiplication of the ratio defined by the user and the total number of instances detected.
